Nonlinear Material Modeling in FEA using HyperMesh & OptiStruct

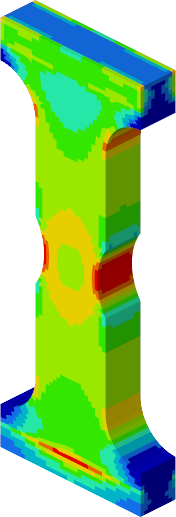

This article aims to highlight the key aspects and influences of nonlinear material modeling in FEA. Simulations always aspire to model reality as closely as possible, or at least necessary. Here, accurate material representations play a central role since they directly influence a component’s stiffness and strength. A simple linear relation between stress and strain, i.e., force and deformation, is thus rarely sufficient, necessitating nonlinear materials. Typical engineering applications are ubiquitous and range from plasticity, such as metals past their yield strength, elastic nonlinear materials such as rubber, or composite materials.

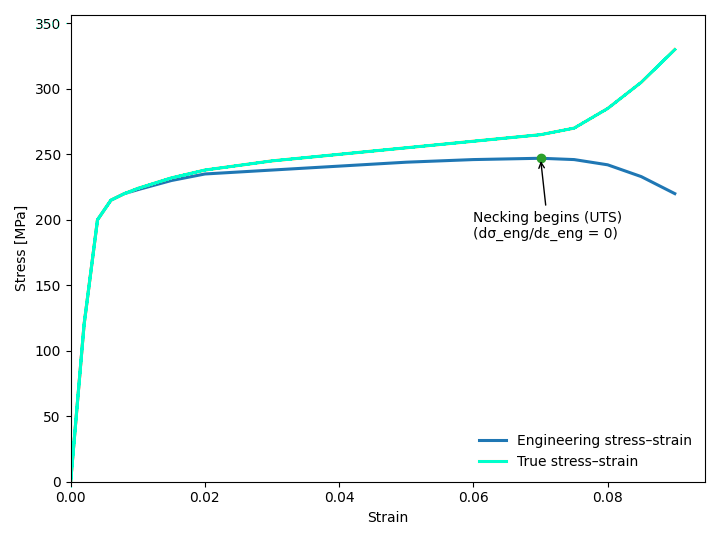

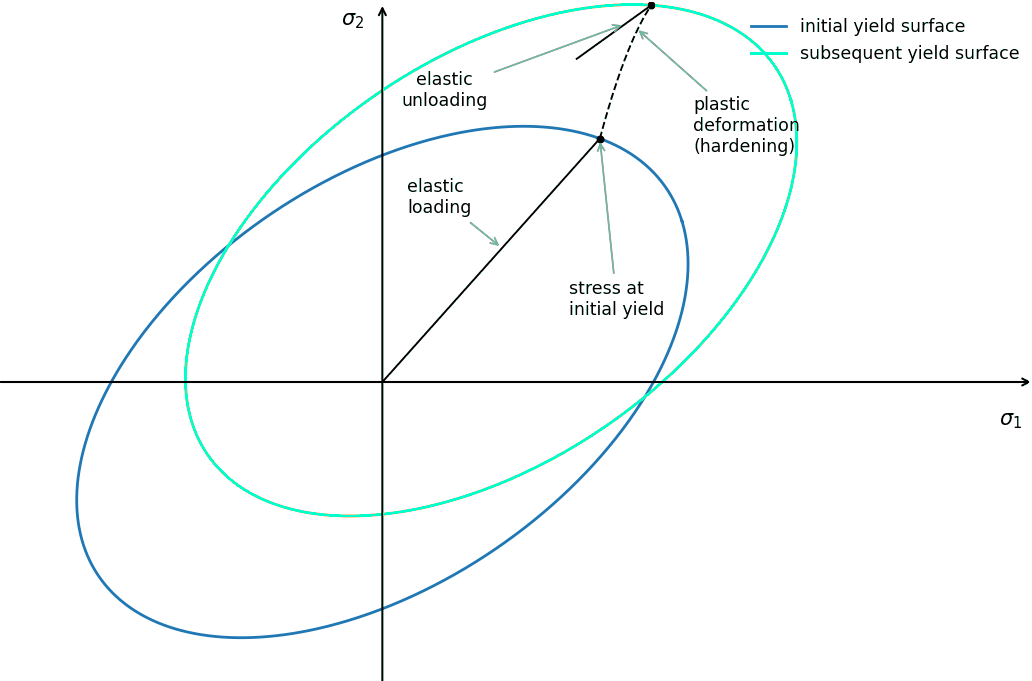

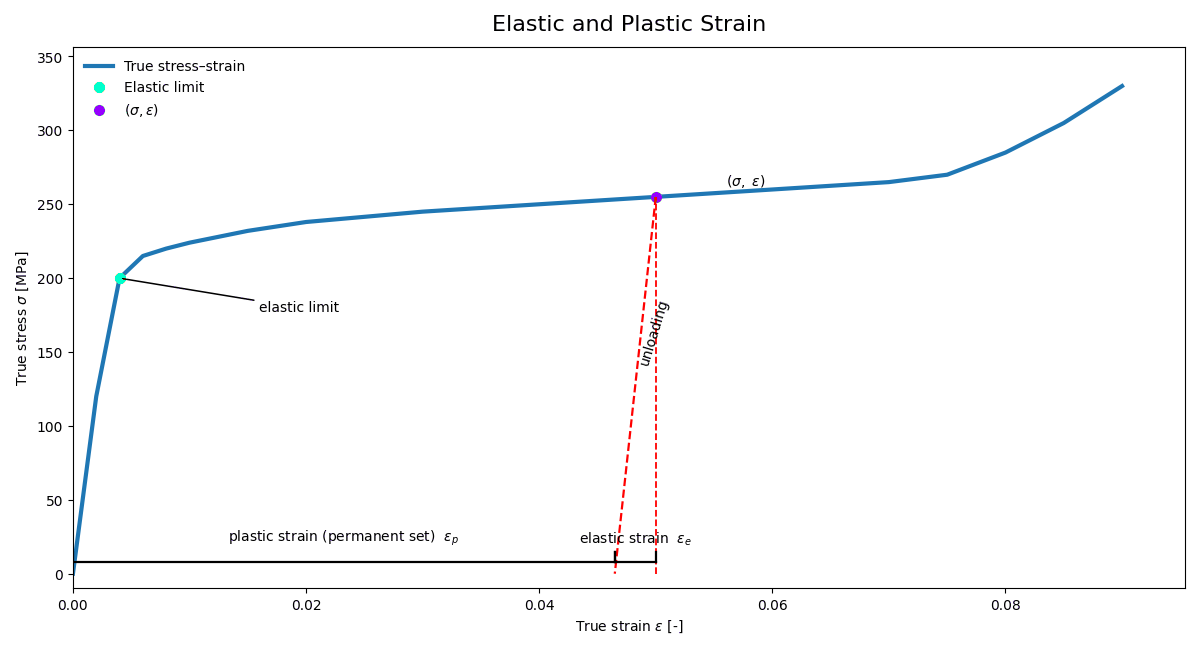

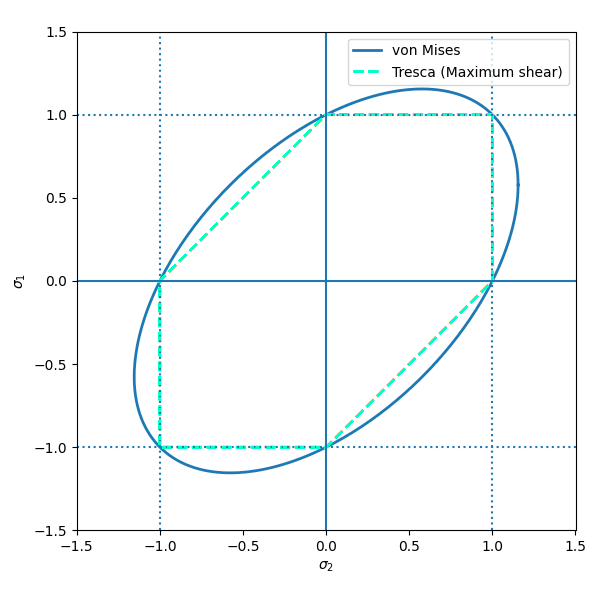

Let us start by giving an overview of non-linear behavior:

FE simulation verifies that flange bolts maintain preload under internal pressure, thermal expansion, and vibration. The study identifies risk of leakage or bolt relaxation, ensuring compliance with industry codes.

Weld seam simulations predict stress concentrations and potential fatigue crack initiation points in automotive body structures. This helps engineers reinforce weld paths without unnecessary material addition.

In aerospace and automotive composites, adhesive joint models predict peel and shear failure under combined thermal and mechanical loads. Validation ensures long-term reliability while supporting lightweight construction.

Most real-world structures are held together by connections. Whether it is the millions of rivets securing the skin of an aircraft, the spot welds along an automotive body-in-white, or the heavy bolts clamping together a gearbox housing, joints and connections form the backbone of structural integrity. They are everywhere, and in many cases, they are the limiting factor in both strength and fatigue performance.

For the engineer engaged in Finite Element Analysis (FEA), joints pose a persistent dilemma. At the global level, an airframe, a vehicle chassis, or a pressure vessel may be analyzed without representing each connection individually. In such cases, the engineer assumes continuity of load transfer, focusing only on global stiffness or strength. But when certification or safety-critical components are involved, simplification is no longer possible. Local flexibility, stress concentrations, preload effects, and nonlinear behaviors at joints can dominate performance, and ignoring them may lead to unconservative or misleading results.

This section addresses the practical modeling of joints and connections in FEA. It reviews the most common connection types used in aerospace, automotive, and mechanical engineering, explains the physical behavior that governs them, and discusses modeling strategies ranging from simplified connector elements to detailed nonlinear 3D simulations. The aim is not to prescribe one “correct” method, but to provide the practicing engineer with an understanding of the available approaches and the trade-offs between computational cost, accuracy, and relevance to design questions.

Bolts and rivets remain central to structural engineering. Rivets, still the workhorse of airframe construction, distribute loads across large panels and provide redundancy. Bolts, on the other hand, are widely used where clamping and serviceability are required, such as in mechanical joints, pressure boundaries, or structural attachments. Both are deceptively simple in appearance but surprisingly complex in behavior.

From the perspective of FE analysis, the first decision is how much fidelity the joint requires. In large assemblies, where thousands of fasteners exist, it is neither practical nor necessary to model each one explicitly. Instead, engineers frequently rely on equivalent stiffness assumptions or simplified connector elements. A common method is to use spider elements that tie the nodes around a hole to a central node. A rigid spider enforces identical displacements, producing an artificially stiff response. A flexible spider, by contrast, distributes loads more realistically, allowing local compliance and better representing the load path.

Modern FE solvers also offer dedicated “bolt” or “fastener” elements, which are highly effective when simulating large bolt patterns. These elements can capture axial and shear stiffness, some even allowing preload to be specified directly. For global analyses, where the interest is primarily in stiffness distribution or overall load transfer, such simplifications strike an excellent balance between accuracy and computational efficiency.

The challenge comes when the engineer must study local joint behavior. Consider a preloaded bolt in a fatigue-critical application. The preload itself generates a stress field that redistributes the applied load between frictional shear at the interface and direct bearing on the bolt shank. If this preload relaxes in service, the joint may slip, dramatically changing the stress state. Such behavior cannot be captured by simple connector elements. Detailed solid models are required, with explicit representation of the bolt, washer, nut, and clamped parts. Preload can then be applied either as an axial force, through thermal pre-strain, or by simulating the tightening process itself. The latter is computationally expensive but offers the most realistic representation, including the effect of friction and thread contact.

Contact modeling is particularly critical in bolt and rivet analysis. In simplified linear contact, surfaces are assumed to remain in contact under all loading. While efficient, this ignores separation, slip, and frictional effects. Nonlinear contact allows surfaces to open, close, and slide, introducing stiffness nonlinearity and stress redistributions that are often decisive for fatigue life. For rivets and interference-fit bolts, initial overlap between the rivet and the hole can be defined, generating residual compressive stresses that delay crack initiation. Such residual stress fields are difficult to capture otherwise but have major implications for durability.

Fatigue and fracture mechanics add another layer of complexity. Many airframe fatigue-critical locations are at rivet holes, where fretting between sheets and local notch stresses drive crack initiation. Advanced FEA methods, such as cohesive zone modeling or fracture mechanics approaches using Stress Intensity Factors and J-integrals, allow engineers to simulate crack growth. In practice, it is common to calibrate these models against coupon tests or joint-level experiments to ensure that assumptions about friction coefficients, preload, and joint stiffness match reality. For those providing or consuming FEA services, establishing such calibration is critical – without it, even the most sophisticated FE analysis may not align with physical behavior.

Lugs are a quintessential aerospace connection. They are simple in form – a hole in a plate or fitting through which a pin is inserted – yet their structural significance is enormous. Lugs connect control surfaces, landing gear, and major structural members. A single lug failure can lead to catastrophic consequences, which is why they are almost always treated as fatigue-critical items in certification.

In traditional design, lugs are checked against classical failure modes: bearing failure under compressive pin loading, net-tension failure across the reduced section, or shear-out failure along the load line. These checks are conservative and ensure basic strength, but they do not capture the subtle redistributions of stress that occur in reality. For example, a lug with clearance will only transfer load through a partial contact arc, leading to localized overstresses. Similarly, the pin itself may bend under load, altering the bearing pattern and increasing stress near the lug radius.

FEA provides the tools to move beyond these simplified checks. In a first approximation, a lug can be represented using shell elements, with the pin load distributed around the hole through constraints. This approach is computationally efficient and useful for global models, where the main interest is how load flows through a structure rather than precise local stress states. However, this simplification often underestimates peak stresses at the hole edge, and ignores nonlinear contact.

A more realistic strategy is to represent the lug and pin with solid elements, explicitly defining the contact between them. This allows the analysis to capture how the pin presses into the lug, how the contact patch evolves as load increases, and how clearance or interference changes the response. Nonlinear contact with friction becomes essential, since in service pins rarely behave as frictionless, perfectly fitting cylinders. Instead, they experience micro-slip, edge contact, and even local plasticity. Only a nonlinear model can capture such phenomena.

Interference fits deserve special mention. Many aerospace lugs are designed with pins installed under slight interference to generate beneficial compressive hoop stresses around the hole. These residual stresses delay crack initiation and increase fatigue life. Accurately capturing this effect in FEA requires careful modeling of initial overlap and elastic-plastic material behavior. When done correctly, the simulation provides invaluable insight into both the static and fatigue performance of the lug.

When fatigue life is under scrutiny, engineers turn to fracture mechanics. Stress Intensity Factor evaluation at critical points allows prediction of crack growth rates under cyclic loading. More advanced approaches, such as extended finite element methods (XFEM), allow cracks to initiate and propagate directly in the model without remeshing. This has proven extremely powerful in the aerospace sector, where regulatory authorities demand demonstration of safe crack growth behavior in lugs.

Welded joints are among the most widely used connection types in mechanical and automotive structures. Unlike bolts or rivets, welds are continuous connections, often carrying load across significant lengths. However, they are also prone to stress concentrations, residual stresses, and fatigue cracking, particularly at the weld toe or root.

In FE analysis, the first challenge is deciding the level of detail. A global chassis model, for example, may treat welds simply as line constraints, ensuring that load is transmitted between parts. This is efficient and often sufficient for stiffness studies. But for durability or fatigue assessments, weld representation must be more refined.

One approach is to use shell elements with tied connections along the weld line. This ensures load transfer while keeping the model efficient. For higher fidelity, solid elements can represent the actual weld geometry, including fillets and penetration profiles. This allows the stress concentration at the weld toe to be resolved, which is often where fatigue cracks initiate. The difficulty is that real weld geometries are highly irregular, and modeling them in detail across an entire structure is impractical.

To address this, engineers often employ the “hot spot” method. Instead of modeling the weld toe geometry explicitly, stresses are extracted at defined points near the weld, and fatigue assessment is based on these “hot spot” stresses. This method is widely accepted in design standards such as IIW and provides a pragmatic compromise between accuracy and computational effort.

Residual stresses from welding also play a significant role. Thermal cycles during welding create tensile residual stresses that reduce fatigue life. Advanced FEA can simulate the welding process itself, including heat input, cooling, and phase changes, but such models are computationally heavy and generally reserved for research or critical applications. In practice, many design engineers rely on simplified residual stress assumptions, applying them as initial conditions in fatigue analyses.

Adhesive bonding has become increasingly important in modern structures, particularly in aerospace composites and lightweight automotive assemblies. Bonded joints offer smooth load transfer, eliminate the need for mechanical fasteners, and reduce stress concentrations. However, they introduce new challenges in both design and simulation.

From the perspective of FEA, bonded joints can be modeled in several ways. Thin adhesive layers can be represented using cohesive elements, which define a traction–separation law. This approach allows progressive damage and failure to be simulated, making it ideal for durability and crashworthiness studies. In cases where the adhesive layer is very thin relative to the adherends, engineers may approximate it using shell elements with reduced stiffness or by applying contact with defined shear and normal behavior.

Cohesive Zone Modeling (CZM) has become a standard tool for adhesive simulation. In CZM, the adhesive behaves linearly up to a critical stress, after which stiffness degrades until full separation occurs. This captures the progressive nature of adhesive failure, which is rarely instantaneous. Another powerful method is the Virtual Crack Closure Technique (VCCT), which evaluates energy release rates to predict crack growth along an adhesive interface. Both approaches are widely implemented in commercial FE solvers and form the backbone of bonded joint analysis in FEA services today.

As with welds, the level of detail depends on the analysis objective. In large assembly models, bonded joints may be represented simply as tied contacts, ensuring continuity. For certification-level analyses, however, the adhesive must be represented explicitly, with careful calibration of cohesive laws against experimental data. Adhesives are highly sensitive to temperature, humidity, and aging, so validation against physical tests is essential if the FE model is to provide reliable predictions.

Not all connections are rigid or intended to provide purely structural continuity. Many mechanisms rely on connections that are deliberately flexible, compliant, or damped in order to transmit loads while accommodating motion or absorbing vibration. Examples include elastomeric bushings in automotive suspensions, flexible couplings in rotating machinery, and vibration isolators in aerospace equipment mounts. Unlike bolts, rivets, or welds, these connections are designed as functional components in their own right, rather than as near-rigid attachments.

From an FEA perspective, flexible connections introduce both opportunities and challenges. Their primary role is often to filter loads and vibrations, which means their behavior is dominated by stiffness, damping, and in some cases frequency-dependent viscoelastic effects. Representing them as rigid or perfectly elastic would entirely miss their engineering purpose.

The most straightforward approach is to use spring or bushing elements available in most commercial FE solvers. These allow directional stiffness to be specified independently in translation and rotation. For example, an automotive suspension bushing can be represented with high stiffness in the vertical load path, moderate stiffness laterally, and very low stiffness in rotation about a particular axis. Damping can be added as viscous coefficients, enabling the model to reproduce not only static compliance but also dynamic attenuation of vibrations.

For more advanced cases, particularly where large deformations or nonlinear material behavior is relevant, the flexible connector itself can be modeled as a solid continuum with appropriate constitutive laws. Elastomeric components may require hyperelastic material models such as Mooney-Rivlin or Ogden formulations, and if hysteresis or rate-dependence is important, viscoelastic properties must be included. This is common in aerospace isolators, where the time-dependent response governs vibration transmission into sensitive equipment.

Another practical consideration is the interaction between flexible connectors and surrounding rigid structure. In many mechanisms, the compliance of bushings or dampers allows redistribution of loads across multiple paths. Capturing this correctly in FE analysis may require a combination of simplified directional springs for system-level models and detailed solid material models for component-level studies. Calibration against experimental stiffness and damping curves is essential, since small errors in connector properties can propagate into large discrepancies in predicted dynamic response.

Flexible and damped connections highlight the broader role of FE analysis beyond static strength evaluation. They demonstrate how joints can be modeled not only as structural weaknesses to be managed, but also as functional elements to be optimized for noise, vibration, harshness (NVH), fatigue, and comfort. In modern mechanical and automotive design, mastering this aspect of joint modeling is just as important as predicting bolt preload or weld toe stresses.

Joints and connections are among the most challenging aspects of FE analysis. They are small compared to the overall structure, yet their behavior often governs stiffness, strength, durability, and dynamic performance. Bolts and rivets require careful treatment of preload and contact; lugs demand nonlinear analysis and sometimes fracture mechanics; welds bring issues of residual stress and stress concentration; bonded joints require progressive failure modeling; and flexible connectors add another layer, where frequency-dependent compliance and damping must be captured accurately to predict real-world performance.

For the practicing engineer, the central question is always: how much fidelity is necessary? Simplified representations may suffice for global stiffness or load-path analysis, while safety-critical or fatigue-critical applications demand nonlinear 3D detail. Flexible and damped connections add further nuance, since their purpose is not just to hold components together but to actively tune load transfer and vibration response.

In every case, validation against experimental data is indispensable. Preload, friction, damping, and material nonlinearity are difficult to capture purely from theory, and without calibration, even sophisticated FE models may diverge from reality.

By understanding the physics of both rigid and flexible connections, and by choosing modeling strategies appropriate to each design question, engineers can harness FEA not only as a tool for global structural analysis but also as a predictive framework for local failure, fatigue life, and vibration performance. For organizations offering or consuming FEA services, mastery of these modeling methods is a decisive capability, enabling efficient and accurate design validation across aerospace, automotive, and mechanical engineering.
